MAP Viewer Configuration in OBIEE 11.1.1.6.0 - Part - 2

MAP Viewer Configuration in OBIEE 11.1.1.6.0 - Contd...

  1. Oracle Database
  2. OBIEE Server
  3. OBIEE RPD
  4. OBIEE Maps
  5. Weblogic
  6. Errors
  7. Upgrade
  8. Customize
  9. Patch
Download

Sample RPD for Map View here
Sample data for RPD here

Configure and load the RPD and database and check if the connections
Create a schema mvdemo/mvdemo for the same

Rpd password is "Admin12345"


Configure the Map Viewer

Step 1: Login to the Map Viewer Admin console as given below

or

from

http://localhost:9704/ mapviewer/mvlogon.jsp



Step 2: Click on Data sources







Step 3: Enter the database details as below



Step 4: Very that the MAP Details has appear in the Console





Step 5:Select "Manage Map Tile Layers"

Select Create> Select Google Maps> Continue

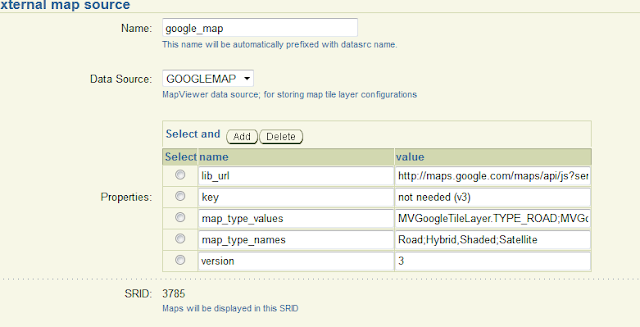

Step 6: Enter the Details as below


lib_url=http://maps.google.com/maps/api/js?sensor=false

key =not needed (v3)

Enter the details as in the above screen and click submit button on the same page




Step 7: Click on ‘Bring Online’ so that the Map will be available to use in OBIEE Answers.



To make sure that the map is created properly  or not ,click on ‘View Maps/ Manage Tiles’ and screen should be looks as follows .





With this step the Map Viewer configuration is complete and now we can start with the configuration in Answers.

Check the next part for the Map configuration in Answers

  1. Oracle Database
  2. OBIEE Server
  3. OBIEE RPD
  4. OBIEE Maps
  5. Weblogic
  6. Errors
  7. Upgrade
  8. Customize
  9. Patch

MAP Viewer Configuration in OBIEE 11.1.1.6.0 - Part - 3

Thanks,
Sandeep Venu



SHARE

About test

    Blogger Comment
    Facebook Comment

2 comments:

jotawolf said...

Hi Sandeep

I think I got all configured but the maps are not shown, I wonder where I can see the log or a trace for the maps requests.

Aswin said...

great stuff!!! But i am getting the following error when i click ‘View Maps/ Manage Tiles’ . Please help

error: [MVGlobalVariables.getMapCacheConfig] MAPVIEWER-05523: Cannot process response from MapViewer server. (GOOGLMAP.GOOGLE_MAP:)
